• Tolookah@discuss.tchncs.de ⁨22⁩ ⁨hours⁩ ago

  There looks to be no feedback mechanism, this would make it less useful for laser applications, as drift would not let it keep position well enough. Very neat though.

  source

  • unexposedhazard@discuss.tchncs.de ⁨21⁩ ⁨hours⁩ ago

    Depending on how its built you might be able to do adjustment and sensing with a single coil. Similar to how you can do current sensing in motors or how you can send and receive with the same coil in a metal detector.

    source

    • WaterWaiver@aussie.zone ⁨10⁩ ⁨hours⁩ ago

      Similar to how you can do current sensing in motors

      I do not think there are not enough variables here to make this work. Reading coil current won’t give you any information you don’t already know if you’re already controlling coil current. You need to be reading at least one more variable that is somehow related to coil position.

      Turning off the coil drive and shorting the coil temporarily to measure current is unlikely to give you anything but the same current you were driving it with (minus some losses). Ie still not an extra variable.

      you can send and receive with the same coil in a metal detector.

      This introduces new variables! Reflected signal magnitudes (and distortions & phase delays) that depend on distance to a nearby metal object that you intentionally install near the coil (eg the metal casing).

      Not sure how easy or reliable this would be to do in practice. I have my doubts but I could be wrong :)

      source
    • Tolookah@discuss.tchncs.de ⁨21⁩ ⁨hours⁩ ago

      I’m skeptical, but I kind of want one to mess around with. (How fast can it move, how accurate, etc)

      source

      • unexposedhazard@discuss.tchncs.de ⁨20⁩ ⁨hours⁩ ago

        I never worked with these before, but these coils are apparently called “Voice Coil Motors” (VCM). The one from this post is big but its the same tech that is used on a smaller scale in phones.

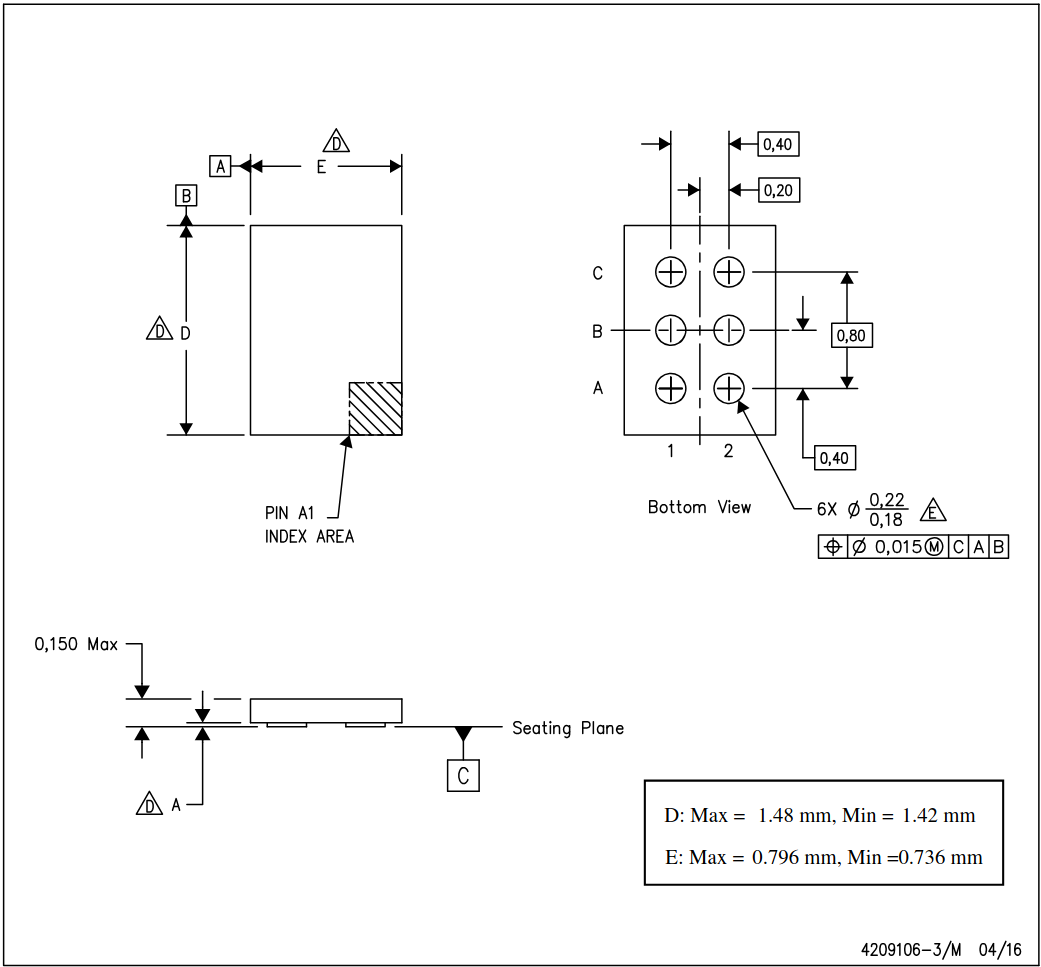

        I went and found a “driver” for these things and took a look at the datasheet to understand how it is typically controlled. This thing is 1.5mm x 0.8mm small so something you might actually find in a phone.

        www.ti.com/lit/ds/symlink/drv201.pdf#page=8

        The device is used to control the current in the voice coil motor (VCM). The current in the VCM generates a magnetic field which forces the lens stack connected to a spring to move. The VCM current and thus the lens position can be controlled via the I2C interface and an auto focus function can be implemented


        source
